Aluminum Frame Hose Reels

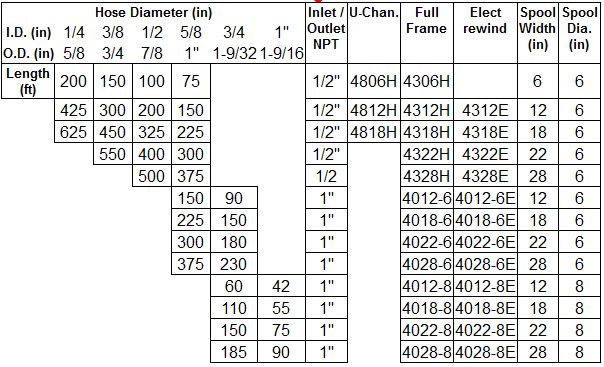

Reel Sizing Chart
Hose Diameter (in)							Inlet / Outlet NPT	U-Chan.	Full Frame	Elect rewind	Spool Width (in)	Spool Dia. (in)
I.D. (in)	1/4	3/8	1/2	5/8	3/4	1"
O.D. (in)	5/8	3/4	7/8	1"	1-9/32	1-9/16
Length (ft)	200	150	100	75			1/2"	4806H	4306H		6	6
	425	300	200	150			1/2"	4812H	4312H	4312E	12	6
	625	450	325	225			1/2"	4818H	4318H	4318E	18	6
		550	400	300			1/2"		4322H	4322E	22	6
			500	375			1/2		4328H	4328E	28	6
				150	90		1"		4012-6	4012-6E	12	6
				225	150		1"		4018-6	4018-6E	18	6
				300	180		1"		4022-6	4022-6E	22	6
				375	230		1"		4028-6	4028-6E	28	6
					60	42	1"		4012-8	4012-8E	12	8
					110	55	1"		4018-8	4018-8E	18	8
					150	75	1"		4022-8	4022-8E	22	8
					185	90	1"		4028-8	4028-8E	28	8

	4800 Series
	Features:	One piece 3/16" thick aluminum frame. Stainless Steel swivel. Adjustable molded resin drag. Aluminum Disks. PVC spool. Plated steel hardware. Carbon steel manifold.

	4300 Series
	Features:	Heavy duty aluminum frame. Super swivel with ball bearing support and grease fitting. Spring loaded pin-lock. Adjustable molded resin drag. Aluminum Disks. PVC spool. Plated steel hardware. Carbon steel manifold. 2 reels shown with stacking kit.

	4300E Series
	Features:	Heavy duty aluminum frame. Super swivel with ball bearing support and grease fitting, & plastic chain guard. Switch and solenoid are mounted on a SS plate and wired to 12 volt electric motor. Aluminum Disks. PVC spool. Plated steel hardware. Carbon steel manifold. Shown with optional hose guide.
