FLANGED BASES |
|
FLANGED BASES |
| Carbon Steel, Power Coated Black, Models: | |||||||

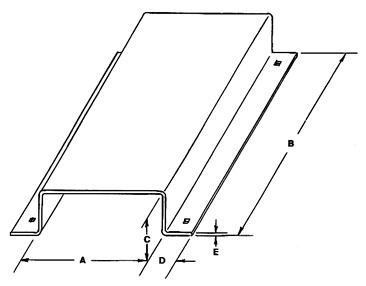

| Dimensions (in.) | Wt. | ||||||
| Model | A | B | C | D | E | Lbs. | |
| 2175 | 12 | 24 | 4.5 | 2.5 | 1/4 | 16 | |
| 2176 | 12 | 30 | 4.5 | 2.5 | 1/4 | 21 | |
| 304L Stainless Steel Models: | |||||||
| Dimensions (in.) | Wt. | ||||||
| Model | A | B | C | D | E | Lbs. | |
| 2180 | 12 | 24 | 4.5 | 2.5 | 3/16 | 31 | |
| 2181 | 12 | 30 | 4.5 | 2.5 | 3/16 | 38 | |
| 2182 | 12 | 40 | 4.5 | 2.5 | 3/16 | 52 | |
All bases include squaremounting holes, located in corners, that can use optional model2165 Rubber pad kit: 4 pads, carriage bolts, washers, nuts.
Stainless Steel Hose Reels
HandCarry Bases
Direct DriveBases with 10" Pneumatic Tires, 13 HP Max
Direct DriveBases with Pneumatic Tires, 20 HP Max
Flanged Bases
Belt Drive Basesfor 18-20 HP Engines
Accessories
CONTACT US FOR PRICING: (727) 531 1770
