Stainless Steel Hose Reels

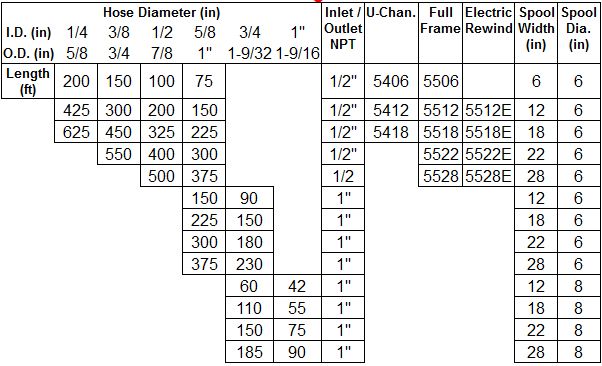

Reel Sizing Chart
Hose Diameter (in)							Inlet / Outlet NPT	U-Chan.	Full Frame	Electric Rewind	Spool Width (in)	Spool Dia. (in)
I.D. (in)	1/4	3/8	1/2	5/8	3/4	1"
O.D. (in)	5/8	3/4	7/8	1"	1-9/32	1-9/16
Length (ft)	200	150	100	75			1/2"	5406	5506		6	6
	425	300	200	150			1/2"	5412	5512	5512E	12	6
	625	450	325	225			1/2"	5418	5518	5518E	18	6
		550	400	300			1/2"		5522	5522E	22	6
			500	375			1/2		5528	5528E	28	6
				150	90		1"				12	6
				225	150		1"				18	6
				300	180		1"				22	6
				375	230		1"				28	6
					60	42	1"				12	8
					110	55	1"				18	8
					150	75	1"				22	8
					185	90	1"				28	8

5400 Series
Features:	• One piece 7 gage SS frame.
	• Stainless Steel swivel.
	• Adjustable molded resin drag.
	• SS crank, SS disks, PVC spool

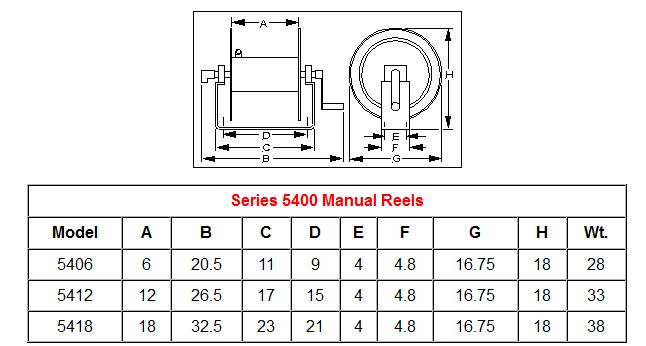

	• Dimensions
	• Parts

5500 Series
Features:	• Heavy duty stainless steel frame, disks, manifold, & hardware
	• Stainless Steel Swivel.
	• Spring loaded lock.
	• Adjustable molded resin drag.
	• PVC Spool resin drag.
	• SS crank.
	• 2 reels shown with stacking kit

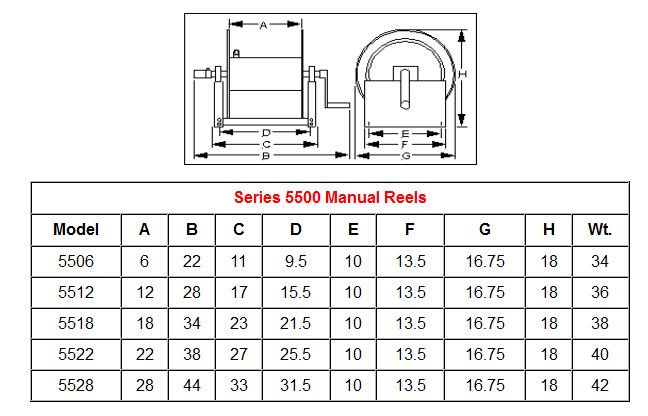

	• Dimensions
	• Parts

5500E Series
Features:	• Heavy duty stainless steel frame, disks, manifold, and hardware!
	• Stainless steel swivel with plastic chain guard. PVC spool.
	• Switch and solenoid are mounted on a SS plate and wired to 12 volt electric motor
	• Shown with optional hose guide

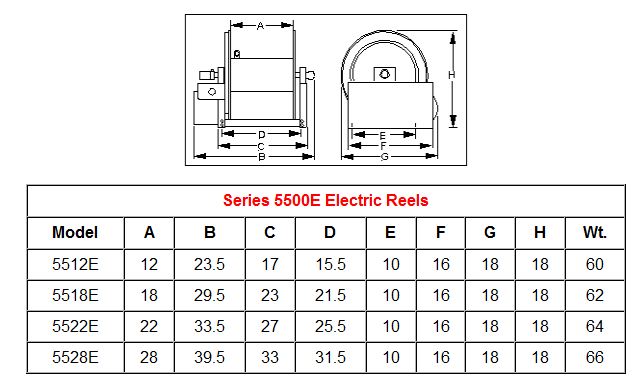

	• Dimensions
	• Parts
