Belt Drive Bases For 18-20 Hp Engines

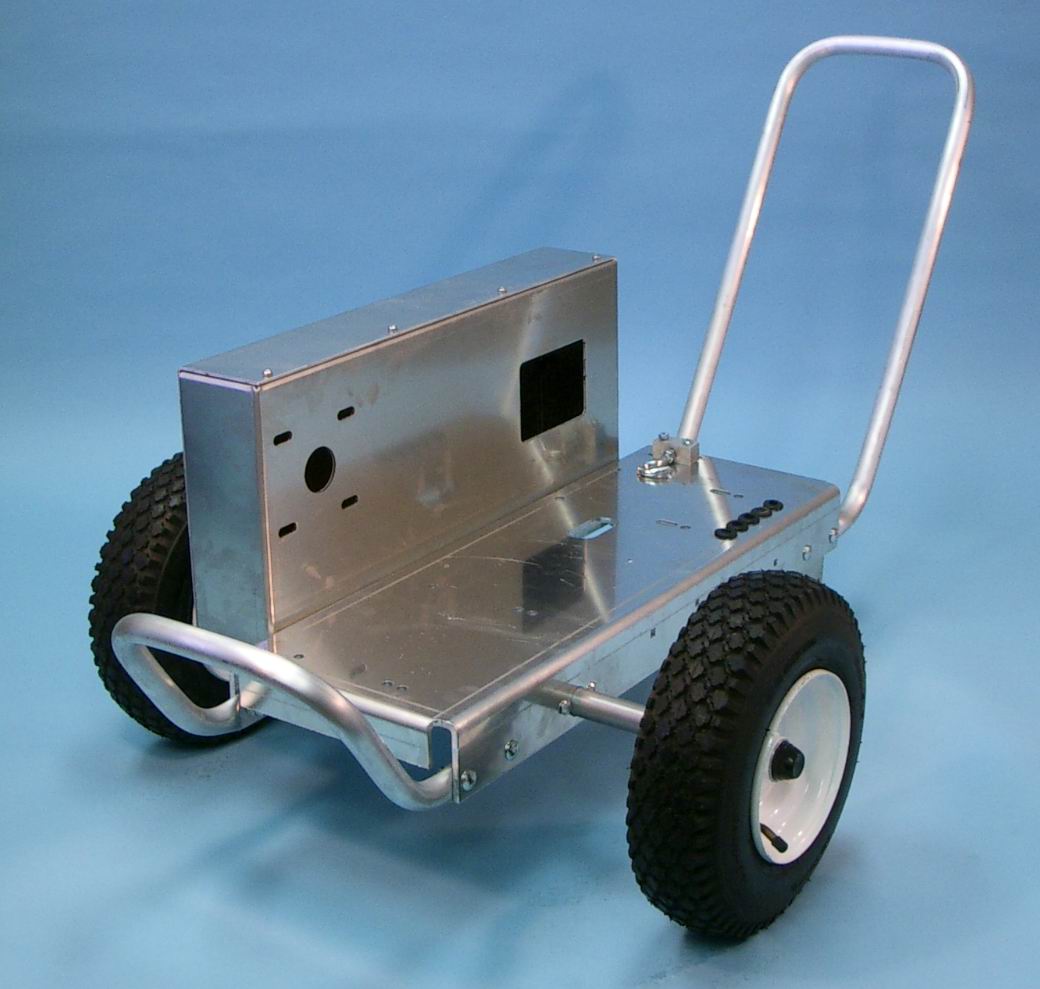

Model 3600
Features:

  • Base is 10" wide x 28" long x 1/4" aluminum, broken on 4 sides. Belt guard has 1/8" aluminum back and cover.
  • Handles are 1" diameter x 1/8" wall aluminum.
  • Foot is 1/4" aluminum with two 2.5" diameter rubber bumpers.
  • Assembly includes 12" diameter fully pneumatic studded tires with inner tube and ball bearings, 3/4" dia. axle, powder coated steel axle tube, nozzle holders, & mounting holes for 18-20 hp Honda engines.
  • The belt guard back mounts directly to the engine as well as the base, providing rigidity. Base and belt guard are designed to use the 3VX pulley and belt system. Belt tensioner is plated steel and mounts directly to holes in the base. Hook moves pump rails to tension belt.

  • Motor/Engine: 18-20 hp Honda
    Weight: 49 lbs.

    Model 2600
    Features:

  • Base is 18" wide x 32" long x 3/16" 304L stainless steel (mill finish), broken on 2 sides. Belt guard has 12 gage stainless back and 16 gage cover.
  • Foot is 7 gage stainless with two 2.5" diameter rubber bumpers.
  • Handles are 1" diameter x 16 gage polished stainless steel.
  • Assembly includes 12" diameter fully pneumatic studded tires with inner tube and ball bearings, 3/4" dia. axle, stainless steel axle tube, nozzle holders, & mounting holes for 18-20 hp Honda engines.
  • Includes automotive size plastic battery box & double bumper foot.
  • The belt guard back mounts directly to the engine as well as the base, providing rigidity. Base and belt guard are designed to use the 3VX pulley and belt system. Belt tensioner is plated steel and mounts directly to holes in the base. Hook moves pump rails to tension belt.

  • Motor/Engine: 18-20 hp Honda
    Weight: 68 + 39 lbs. Shipped in 2 boxes.

    Model 2610
    Features:

  • Base is 18" wide x 32" long x 3/16" powder coated steel, red, broken on 2 sides. 12 gage belt guard back plate and 16 gage cover.
  • Handles are 1" diameter x 14 gage powder coated steel, black.
  • Foot is 7 gage steel with two 2.5" diameter rubber bumpers.
  • Assembly includes 12" diameter fully pneumatic studded tires with inner tube and ball bearings, 3/4" dia. axle, axle tube, nozzle holders, & mounting holes for 18-20 hp Honda engines.
  • Includes automotive size plastic battery box & double bumper foot.
  • The belt guard back mounts directly to the engine as well as the base, providing rigidity. Base and belt guard are designed to use the 3VX pulley and belt system. Belt tensioner is plated steel and mounts directly to holes in the base. Hook moves pump rails to tension belt.

  • Motor/Engine: 18-20 hp Honda
    Weight: 68 + 39 lbs. Shipped in 2 boxes.

    Model 2630
    Features:

  • Skid mount base is 18" wide x 32" long x 3/16" 304L stainless steel (mill finish), broken on 2 sides.
  • Belt guard has 12 gage stainless back and 16 gage cover.
  • Assembly includes nozzle holders, mounting feet with rubber bumpers, & mounting holes for 18-20 hp Honda engines.
  • Includes automotive size plastic battery box.
  • The belt guard back mounts directly to the engine as well as the base, providing rigidity. Base and belt guard are designed to use the 3VX pulley and belt system. Belt tensioner is plated steel and mounts directly to holes in the base. Hook moves pump rails to tension belt.

  • Motor/Engine: 18-20 hp Honda
    Weight: 70 lbs.

    Model 2620
    Features:

  • Base is 18" wide x 32" long x 3/16" powder coated steel, red, broken on 2 sides. 12 gage belt guard back plate and 16 gage cover.
  • Assembly includes nozzle holders, & mounting holes for 18-20 hp Honda engines.
  • Includes automotive size plastic battery box.
  • The belt guard back mounts directly to the engine as well as the base, providing rigidity. Base and belt guard are designed to use the 3VX pulley and belt system. Belt tensioner is plated steel and mounts directly to holes in the base. Hook moves pump rails to tension belt.

  • Motor/Engine: 18-20 hp Honda
    Weight: 70 lbs.

    PLEASE CONTACT US FOR PRICING: (727) 531 1770
